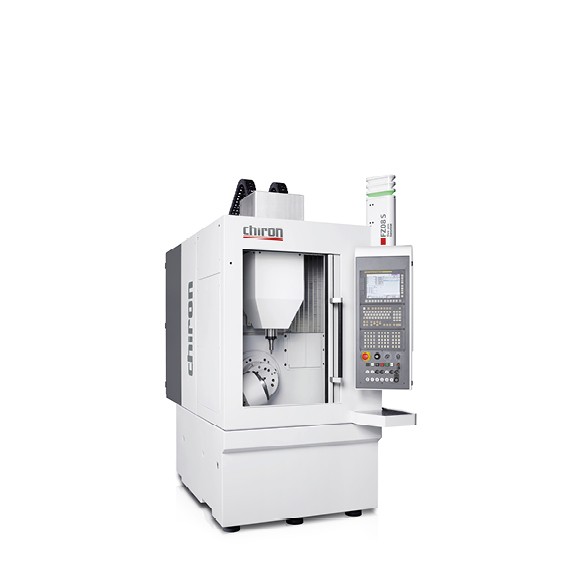

FZ 08 S five axis

08系列
Germany
2 months
Show room machine
6 Months Warranty

紧凑精密灵活的固定工作台加工中心， 配置拾取式自动换刀系统。加工区域宽 敞，可安装数控转轴用于多面加工。

Request

All the details at a glance

Technical data

Traverse paths X – Y – Z max.
270 – 310 – 450 mm
Power max.
9.00 kW
Number of spindles
1
Spindle speed max.
30,000 rpm
Chip-to-chip time
2.20 s
Rapid feed X – Y – Z max.
75 – 75 – 75 m/min
Number of tools max.
40
Tool taper
HSK-A40
Workpiece changing device
Automatic tool change in the pick-up process
Table
轴2轴旋转工作台
Control
Siemens 840D SL
Existing special equipment
  • Chip conveyor 490 mm
  • Coolant equipment KF 150 / FKA 500
  • Machine preparation for coolant or air flowing through spindle
  • Exhaust fan 800 m³/h
  • CHIRON Lasercontrol 40 NT
  • Probe - package RLP40Q
  • CHIRON Kinematics Fit without measuring ball
