Machining centers made by CHIRON China
Taicang Innovation Factory: This name stands for our aim to enable you to manufacture intelligently – with first-class technologies, machining centers and services. Our factory, designed according to current international standards, produces high-quality machining centers, geared to the specific requirements of the local market.
With »German design and quality – made in China« you benefit in several ways: You consistently manufacture in a highly productive manner, with excellent machining results and, thanks to our local production, you can put your machining center into operation faster. In addition, we offer our expertise in the design of turnkey projects with a high degree of automation.

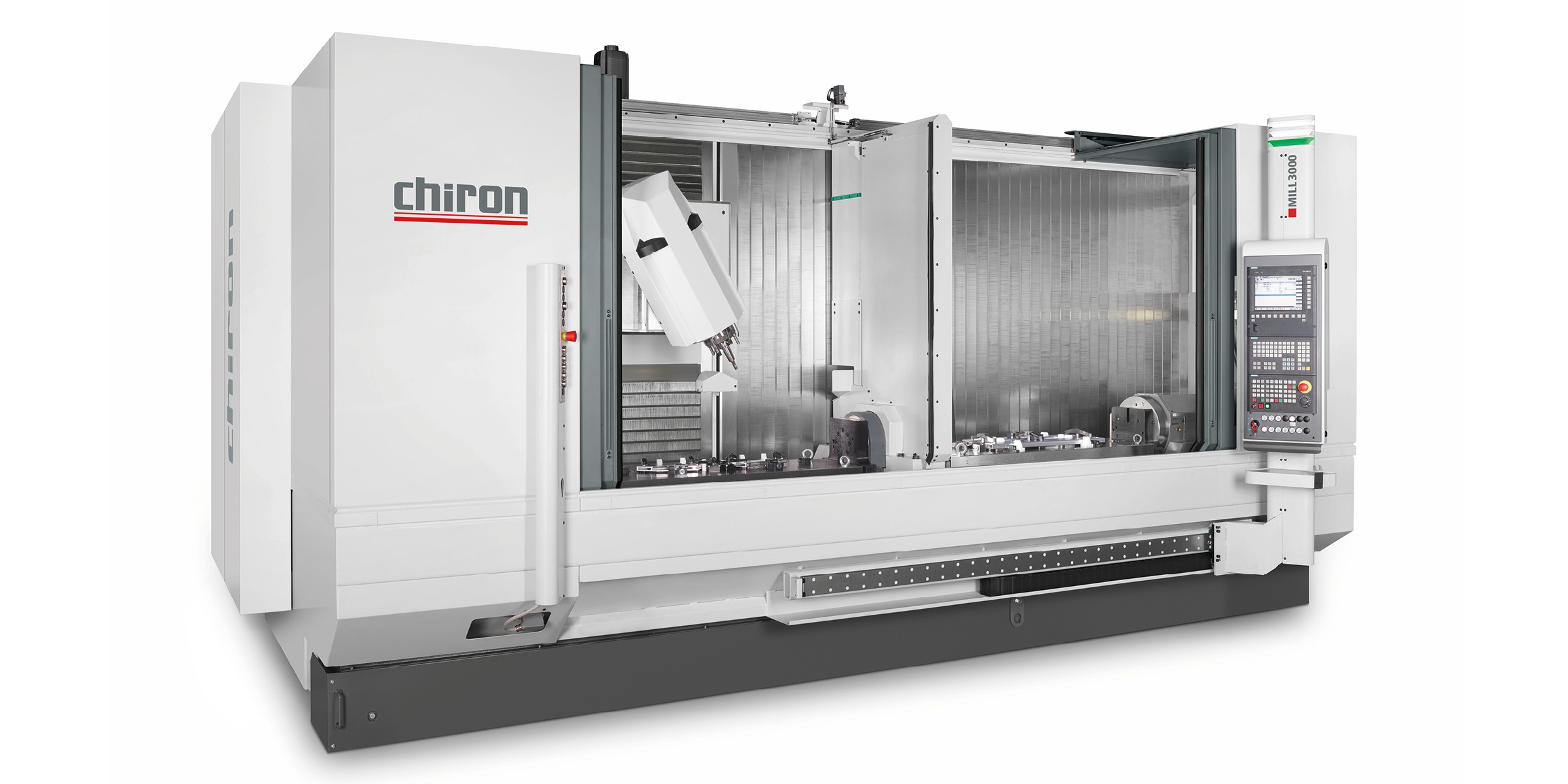

MILL 3000
Are you looking to machine structural components dynamically, precisely and with high performance? The MILL 3000 is your optimum solution for machining at high speed. Whether it is flexible machining of individual parts or volume production: The modular design, which provides numerous configuration options, allows you to configure each MILL 3000 standard machine to create your ideal individual solution.
Highlights
German design and quality – made in China
Vertical moving column principle
Long travel path with compact machine dimensions
Robust machine bed with polymer concrete
High rigidity and thermal stability
Clearly laid out, easily accessibly working area
Easy loading with hoists (cranes, forklifts, etc.)
Working area for larger workpieces or multiple clamping positions
Automatic tool change with the pick-up method
With rotary table and/or NC swivel head

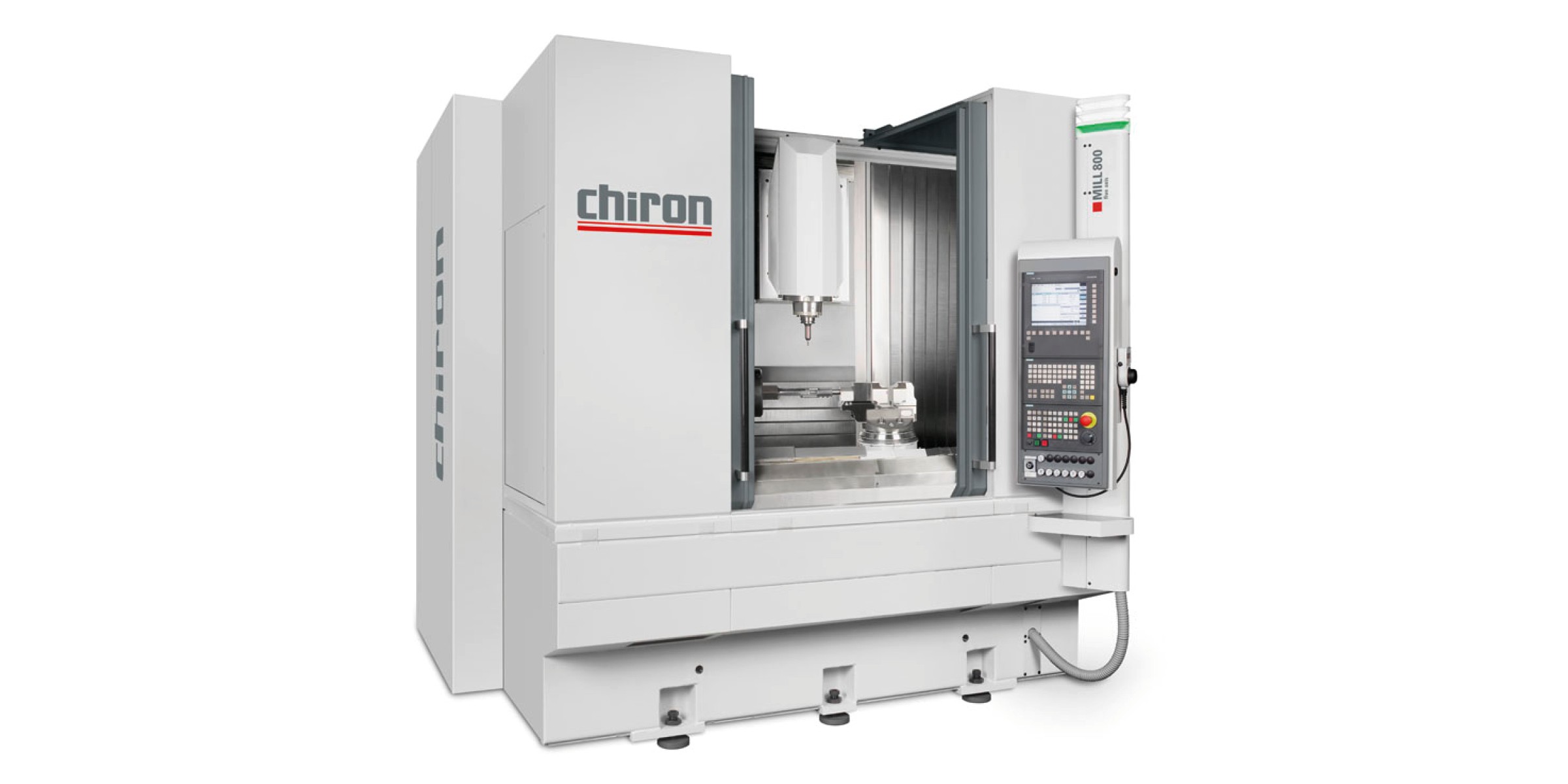

MILL FX 800
The compact MILL 800 five axis offers you the best conditions for real, fast 5-axis simultaneous and complete machining in one clamping position, for highly productive machining and precise results – both in single-piece production and in the production of small and medium-sized series. A particular strength of the machine is the combination of high milling capacity and outstanding stability, reliability and ease of maintenance.
Highlights
German design and quality – made in China
Vertical moving column principle
Compact footprint 4,600 mm x 3,900 mm (W x D)
High rigidity and thermal stability
Maximum precision in positioning and simultaneous operation
Easy loading with hoists (cranes, forklifts, etc.)
Integrated CHIRON two-axis rotary table with direct measuring systems
Fourth axis with swivel range up to ±120°
Fifth axis with torque drive
Fully enclosed working area, stainless steel covers
Ergonomic operating and loading concept

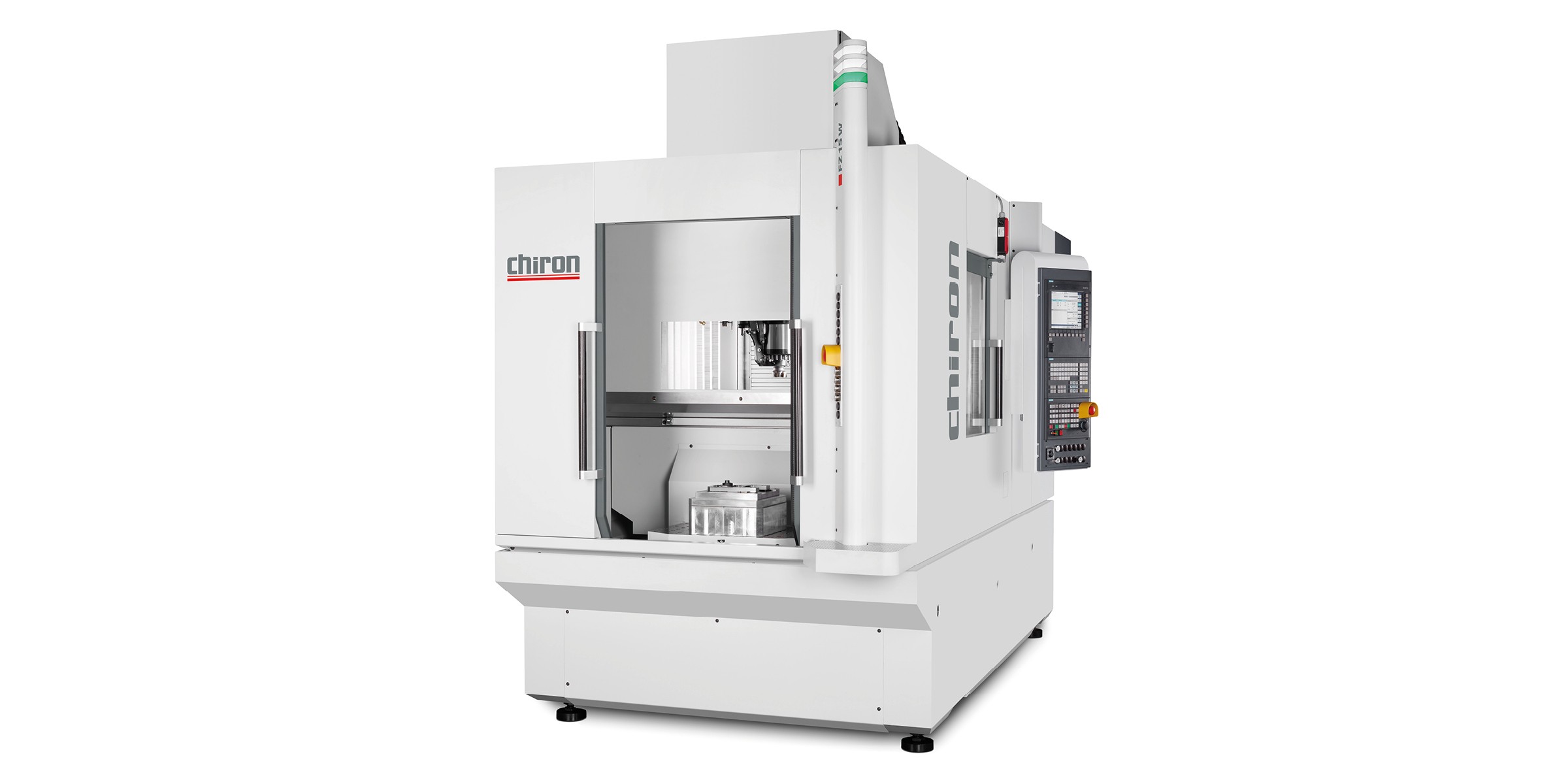

FZ 15 W
When it comes to speed, compact design, stability and reliability, the FZ 15 W vertical machining center is one of the best in its class. The machine is equipped with a basket tool changer, currently the fastest tool change system on the market for chip-to-chip times of 1.9 seconds. Loading and unloading takes place during regular machine operation with the integrated workpiece changer, the rotary table on the fourth axis enables the efficient machining of complex parts in large quantities.
Highlights
German design – made in China
Vertical moving column principle
Mineral-cast machine bed
High rigidity and thermal stability
Fast chip-to-chip times of 1.9 seconds
0° / 180° workpiece changer for loading and unloading during machine operation
High table loading capacity
Easy to expand with the VariocellUno automation solution

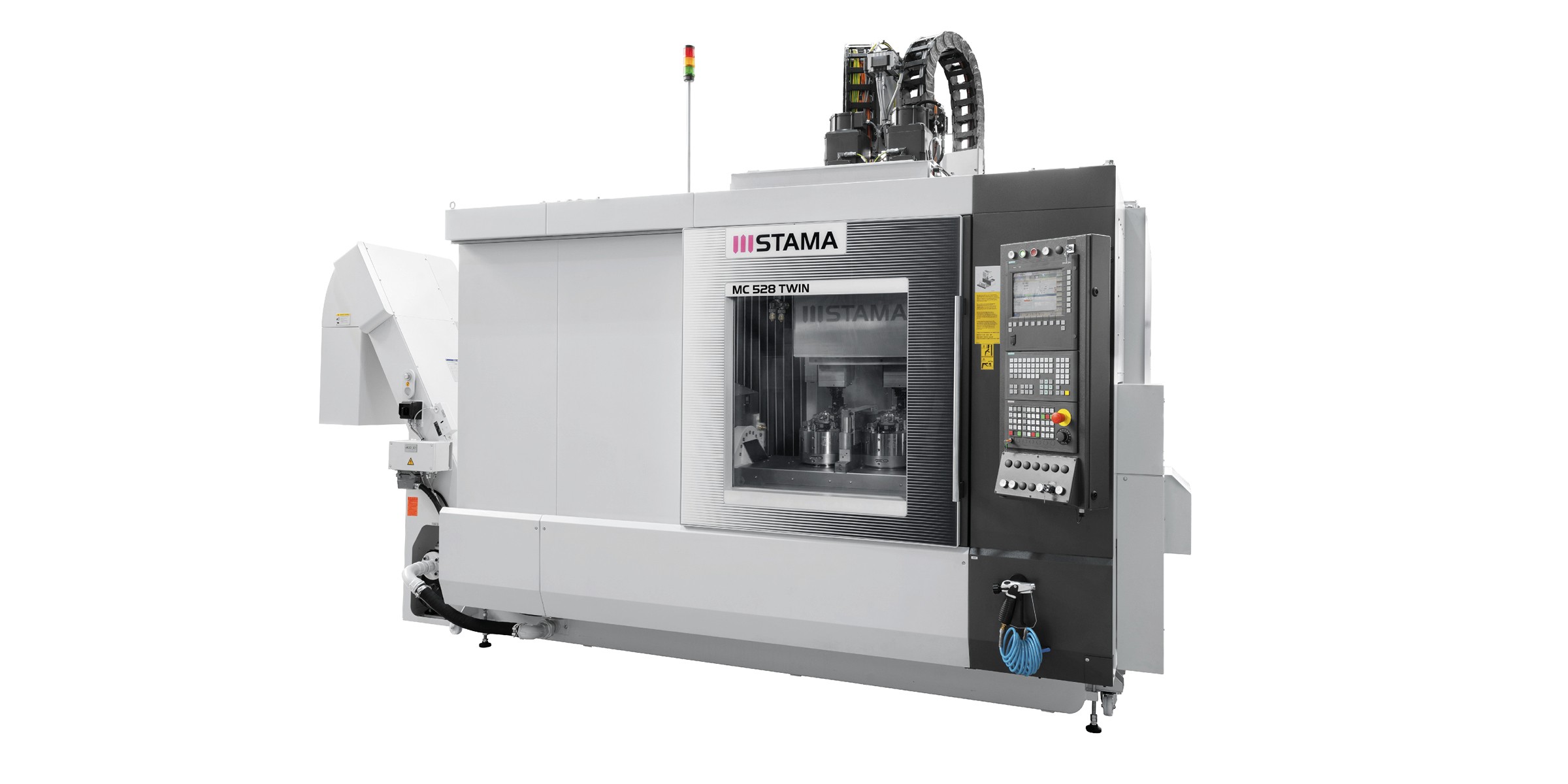

MC 528 TWIN
Whether it's flexible variant production or efficient large series production: The MC 528 TWIN double-spindle machining center allows precise machining with reliably high performance and a clear unit cost advantage. Easy maintenance and the 40 percent reduction in energy consumption compared to single-spindle machines or special machines are further plus points. The machine variant with a spindle distance of 600 mm is intended for complete machining of large workpieces and multiple clamping.
Highlights
German design and quality – made in China
TWIN technology
Spindle distance 320 or 600 mm
High surface area productivity
Reduced costs per unit
High process reliability
3, 4 or 5 axis machining
Various table variants
Simple operation
Manual or automated workpiece handling
