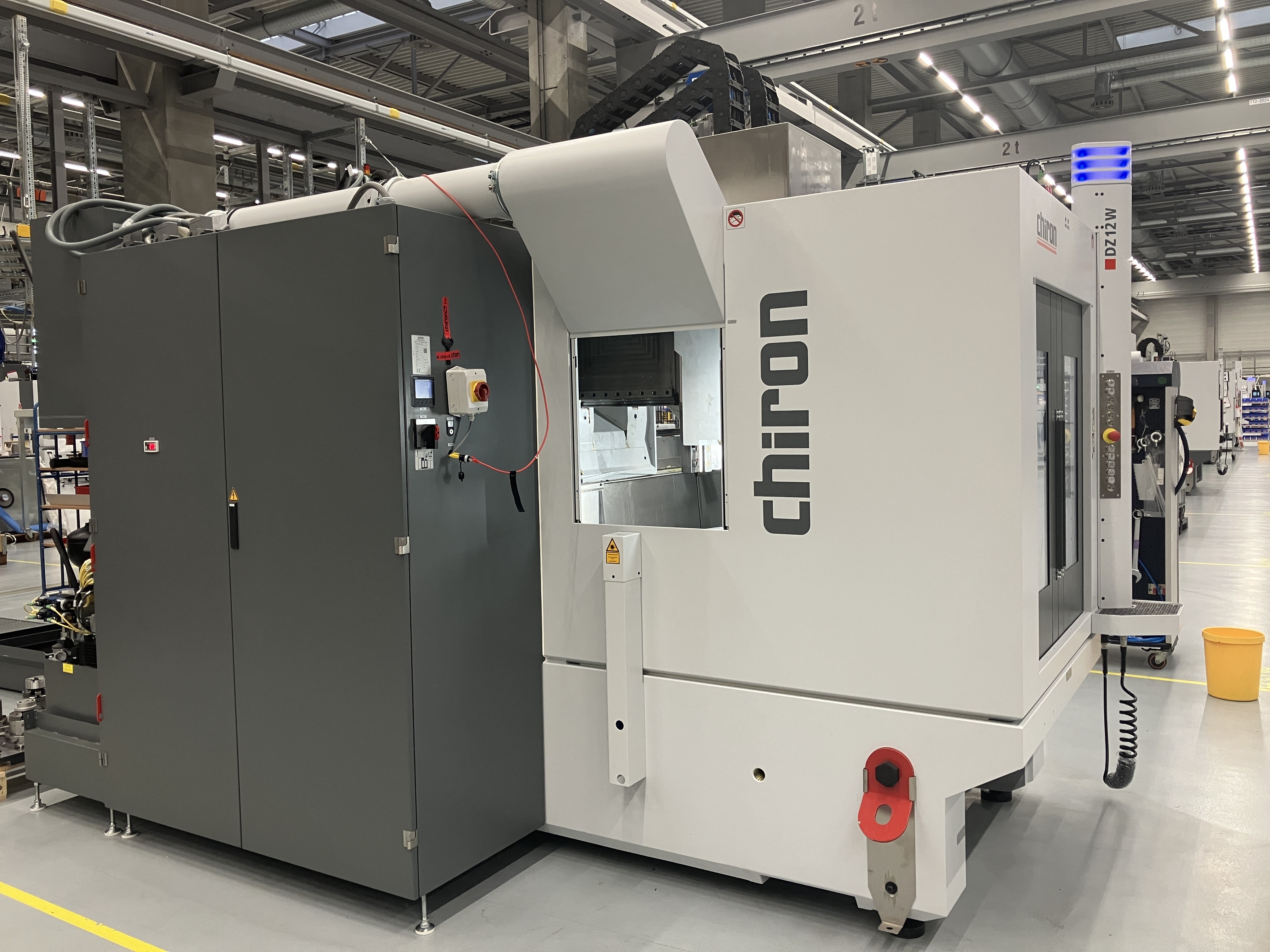

DZ 12 W

12 Series
Germany
2 months
Show room machine
24 Months Warranty
Request

All the details at a glance

Technical data

Traverse paths X – Y – Z max.
550 – 400 – 400 mm
Power max.
36.00 kW
Spindle speed max.
20,000 rpm
Chip-to-chip time
3.10 s
Rapid feed X – Y – Z max.
75 – 75 – 75 m/min
Number of tools max.
2x32
Tool taper
HSK-A63
Workpiece changing device
Automatic tool change in the pick-up process
Control
Siemens ONE
Existing special equipment
  • Coolant equipment KF 150 / FKA 500
  • Chip conveyor 1,050 mm
  • Exhaust fan 800 m³/h
  • Probe - package RLP40QE
  • CHIRON Kinematics Fit without measuring ball
  • Lasercontrol LC 53-DIGILOG

Request

Do you need further options?*
