Stock machines

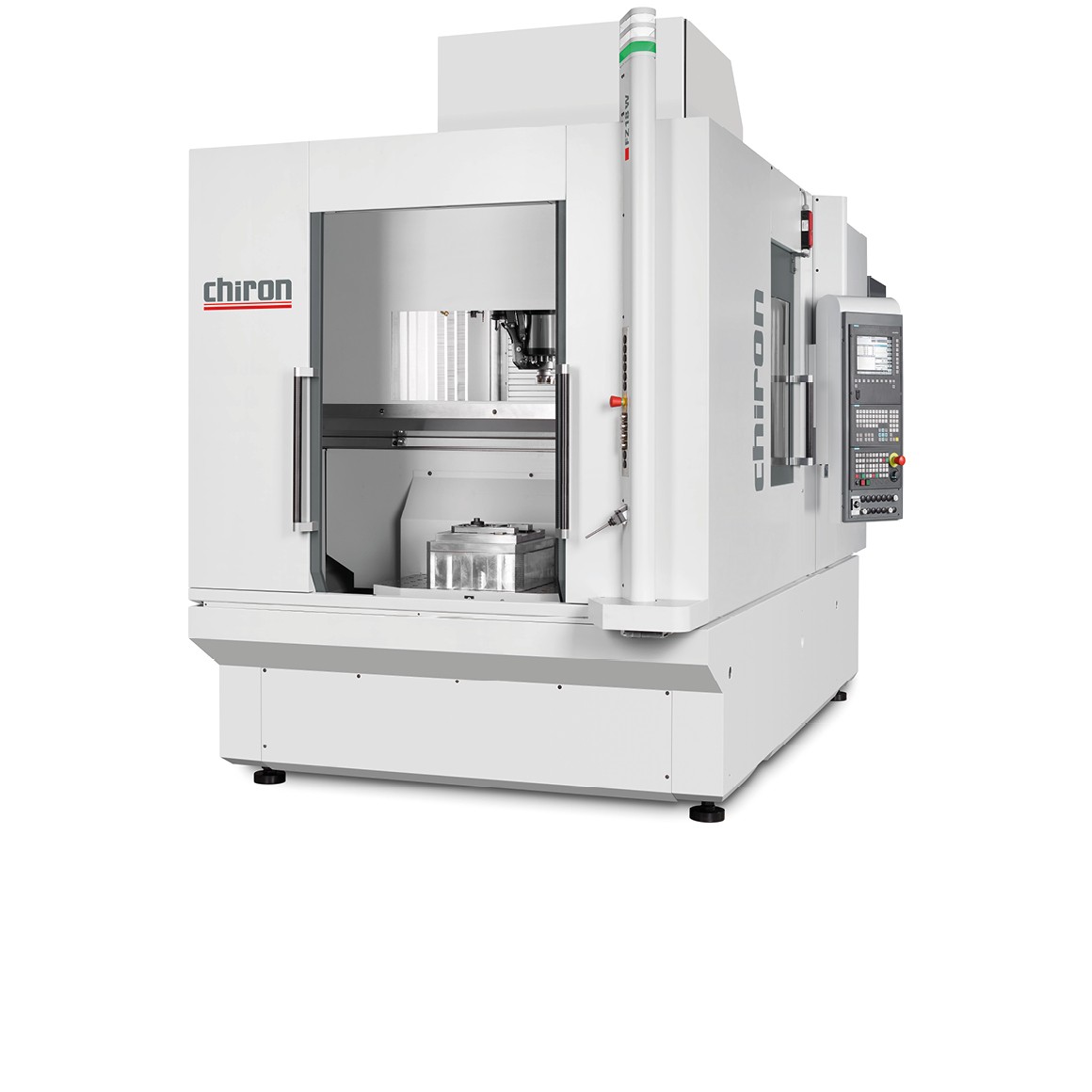

FZ 18 W

18 Series

Germany

4 months

Completely refurbished machine

6 Months Warranty

Request

All the details at a glance

Technical data

Traverse paths X – Y – Z max.

630 – 400 – 630 mm

Power max.

18.00 kW

Number of spindles

Spindle speed max.

12,000 rpm

Chip-to-chip time

2.10 s

Rapid feed X – Y – Z max.

60 – 60 – 60 m/min

Number of tools max.

Tool taper

SK40

Workpiece changing device

Chain changer

Table

Workpiece swivel table

Control

Siemens 840D SL

Existing special equipment

RemoteLine
Chip conveyor 1,050 mm
Coolant equipment
Machine preparation for coolant flowing through spindle
Automatic loading door
NC rotary table, type AWU 160 P
Hydraulic unit

Attachments

db_158-59.pdf

Download
ds_158-59.pdf

Download
