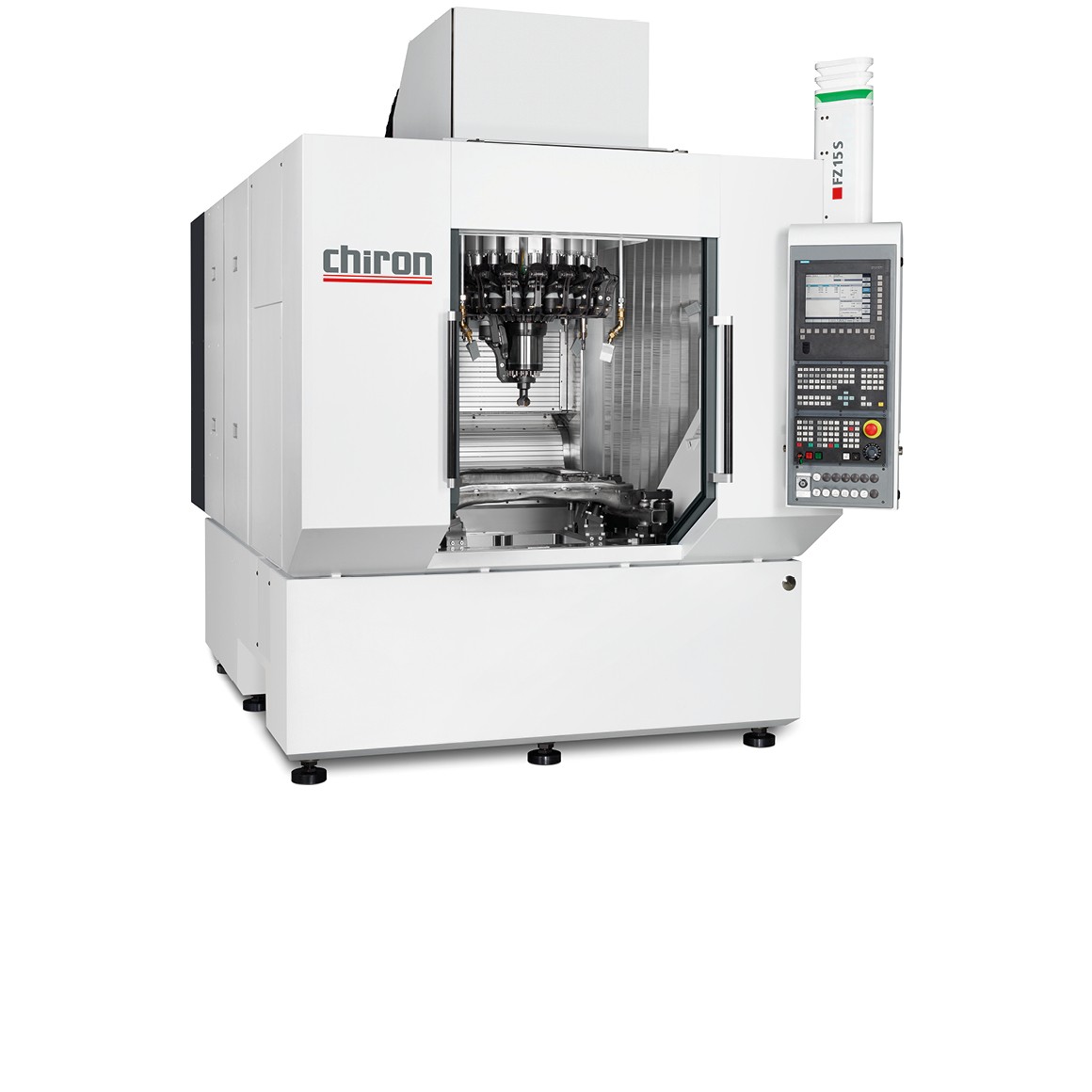

FZ 15 S

15 Series

Germany

Request

All the details at a glance

Technical data

Traverse paths X – Y – Z max.

550 – 400 – 425 mm

Power max.

15.00 kW

Number of spindles

Spindle speed max.

12,000 rpm

Chip-to-chip time

2.10 s

Rapid feed X – Y – Z max.

60 – 60 – 60 m/min

Number of tools max.

Tool taper

HSK-A63

Table

2 axis rotary table

Clamping surface

1100 x 450 mm²

Control

Fanuc 31i-A5

Existing special equipment

2 x NC rotary table
