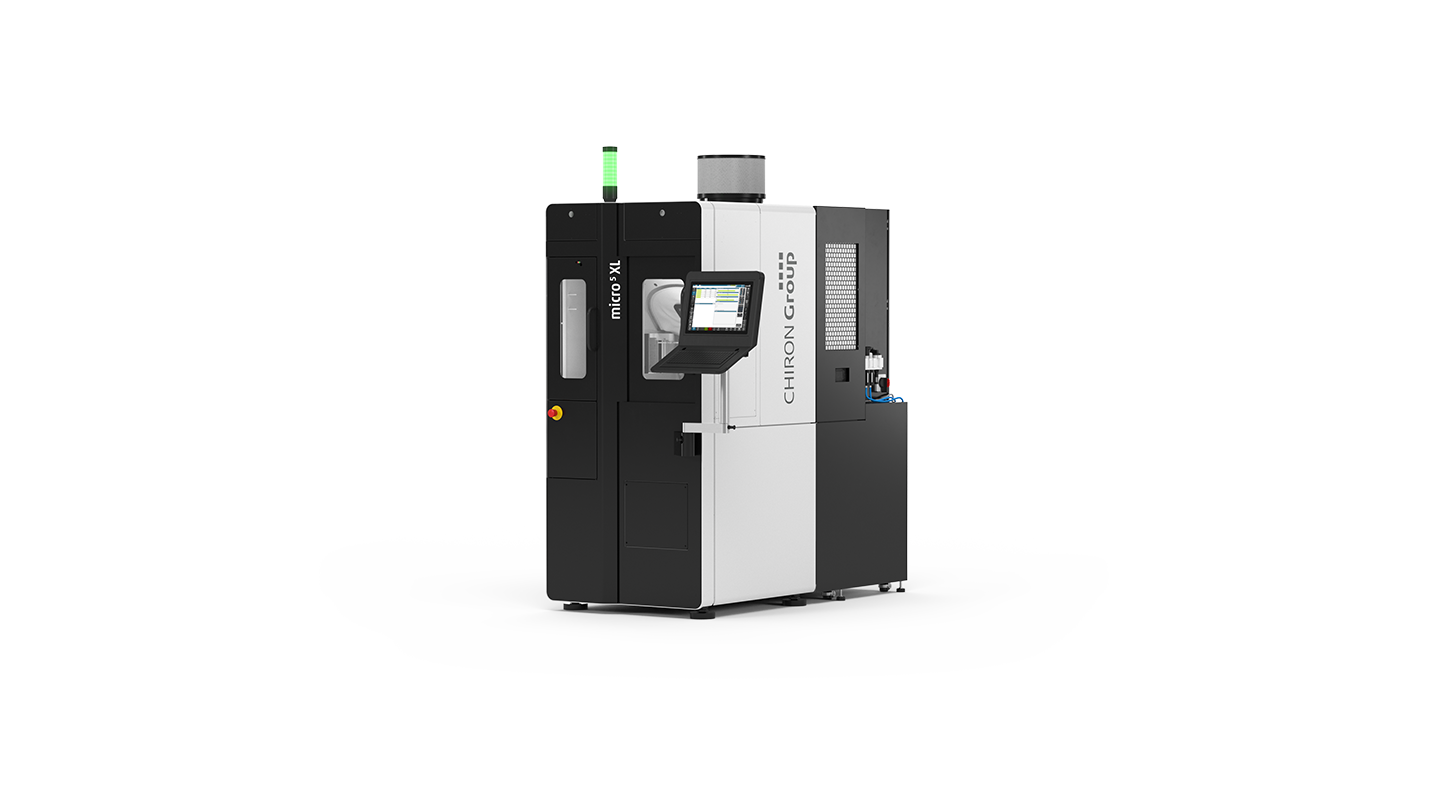

Micro5 XL
Engineered for applications in medical and precision technology, mechanical engineering, electronics, and mold and die manufacturing: with the new Micro5 XL, the CHIRON Group is scaling its revolutionary Micro5 success concept for a broader range of applications in demanding industries and new markets. The micro machine processes complex geometries and a wide variety of materials with maximum dynamics, precision, and short cycle times.
The XL marks a new dimension in micro machining in several respects: extended travel distance, significantly higher cutting performance, and maximum flexibility. Once again, the 5 stands for the ideal ratio between milling center and workpiece – 600 mm to a 120 mm cubic capacity. The Micro5 XL also excels in resource efficiency: with low energy consumption and an outstanding compact footprint including a tower magazine for up to 100 tools, all necessary peripherals and optional automation.
Highlights
High-precision 5-axis machining
Minimum footprint incl. peripherals of 1.7 m2
Machining cube max. side length 120 mm
High static rigidity and repeat accuracy
Outstanding thermal stability
High-speed cutting
Low energy consumption < 3 kWh
Precious metal recovery
Tower magazine for up to 100 tools
Easy access for service and maintenance
Excellent view of the production process
Consistent operating logic also for automation
Ergonomic operation completely from the front
»Micro-machining in a new dimension.«
